sptk::CLayoutClient Class Reference
[GUI Classes]

Base layout manager client. More...

#include <CLayoutClient.h>

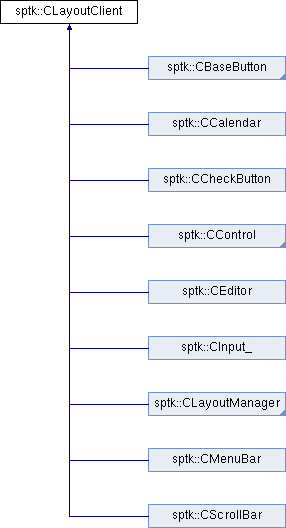

Inheritance diagram for sptk::CLayoutClient:

List of all members.

Public Member Functions
	CLayoutClient (Fl_Widget *widget, int layoutSize, CLayoutAlign ca)
	Constructor.
virtual	~CLayoutClient ()
	Destructor.
CLayoutAlign	layoutAlign () const
	Returns widget's layout align.
void	layoutAlign (CLayoutAlign al)
	Sets widget's layout align.
int	layoutSize () const
	Returns widget's layout size.
void	layoutSize (int ls)
	Sets widget's layout size.
void	label (const char *lbl)
	Sets the new label, makes an internal copy of the string.
void	label (const std::string &l)
	Sets label, makes an internal copy of the string.
const std::string &	label () const
	Returns the current label.
void	name (const char *aname)
	Sets the new widget name.
void	name (const std::string &aname)
	Sets the new widget name.
const std::string &	name () const
	Returns the current name.
virtual bool	preferredSize (int &w, int &h)
	Computes widget's preferred size.
virtual bool	computeSize (int &w, int &h)
	Computes widget's preferred size, and stores size values internally as cache.
virtual std::string	className () const
	Returns widget class name (internal SPTK RTTI).
Fl_Widget *	widget () const
	Returns widget handled by that object.
void	load (const CXmlNode *node, CLayoutXMLmode xmlMode)
	Loads layout client information from XML node.
void	save (CXmlNode *node, CLayoutXMLmode xmlMode) const
	Saves layout client information from XML node.
Protected Attributes
int	m_layoutSize
	The preferred layout size.
int	m_lastPreferredW
	The width as a result of the last call of preferredSize().
int	m_lastPreferredH
	The width as a result of the last call of preferredSize().
Fl_Widget *	m_widget
	Widget to manage.
std::string	m_name
	Widget name (widget id).
std::string	m_label
	Widget caption storage.
CLayoutAlign	m_layoutAlign
	The layout align for the widget in CLayoutManager group.
Friends
class	CLayoutManager

---

Detailed Description

Base layout manager client.

Allows CLayoutManager objects to move and resize the CLayoutClient objects in accordancy with they preferredSize() and layout alignment.

---

Constructor & Destructor Documentation

sptk::CLayoutClient::CLayoutClient	(	Fl_Widget *	widget,
		int	layoutSize,
		CLayoutAlign	ca
	)

Constructor.

Parameters:

	widget	Fl_Widget*, widget to control
	layoutSize	int, the size of the widget in layout. See m_layoutSize for more information.
	ca	CLayoutAlign, widget align in layout

---

Member Function Documentation

virtual bool sptk::CLayoutClient::computeSize	(	int &	w,
		int &	h
	)			[inline, virtual]

Computes widget's preferred size, and stores size values internally as cache.

Used internally by CLayoutManager.

Parameters:

	w	int&, input/output widget preferred width
	h	int&, input/output widget preferred height

References m_lastPreferredH, m_lastPreferredW, and preferredSize().

void sptk::CLayoutClient::label

(

const std::string &

l

)

[inline]

Sets label, makes an internal copy of the string.

Parameters:

l

const string&, new label

Reimplemented in sptk::CGroup, sptk::CScroll, and sptk::CWindow.

References m_label, and m_widget.

void sptk::CLayoutClient::label

(

const char *

lbl

)

[inline]

Sets the new label, makes an internal copy of the string.

Parameters:

lbl

const char*, new label

Reimplemented in sptk::CBaseButton, sptk::CGroup, sptk::CScroll, sptk::CTreeItem, and sptk::CWindow.

References m_label, and m_widget.

Referenced by sptk::CTreeItem::label().

void sptk::CLayoutClient::layoutAlign

(

CLayoutAlign

al

)

[inline]

Sets widget's layout align.

See also:

CLayoutAlign

References m_layoutAlign.

CLayoutAlign sptk::CLayoutClient::layoutAlign

(

)

const [inline]

Returns widget's layout align.

See also:

CLayoutAlign

References m_layoutAlign.

void sptk::CLayoutClient::load	(	const CXmlNode *	node,
		CLayoutXMLmode	xmlMode
	)

Loads layout client information from XML node.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters:

	node	CXmlNode*, the XML node
	xmlMode	CLayoutXMLmode, the mode defining how the layout and/or data should be stored

Reimplemented in sptk::CButtonGroup, sptk::CBaseListBox, sptk::CControl, sptk::CDateTimeBaseInput, sptk::CInput, sptk::CListView, and sptk::CWindow.

Referenced by sptk::CMenuBar::creator().

void sptk::CLayoutClient::name

(

const std::string &

aname

)

[inline]

Sets the new widget name.

Parameters:

aname

std::string&, new widget name

References m_name.

void sptk::CLayoutClient::name

(

const char *

aname

)

[inline]

Sets the new widget name.

Parameters:

aname

const char*, new widget name

References m_name.

virtual bool sptk::CLayoutClient::preferredSize	(	int &	w,
		int &	h
	)			[inline, virtual]

Computes widget's preferred size.

Should be overriten in derived widget if it has any ideas about it's size limits. Widget may want to change none, one, or both preferred width and height suggested by the CLayoutManager.

Parameters:

	w	int&, input/output widget preferred width
	h	int&, input/output widget preferred height

Returns:

true if the size is stable (doesn't depend on input sizes)

Reimplemented in sptk::CBox, sptk::CBaseButton, sptk::CButtonGroup, sptk::CCheckButton, sptk::CBaseListBox, sptk::CDBDropDownList, sptk::CEditor, sptk::CGroup, sptk::CHtmlBox, sptk::CInput_, sptk::CInput, sptk::CListView, sptk::CMemoInput, sptk::CMenuBar, sptk::CProgressBar, sptk::CScroll, sptk::CScrollBar, sptk::CToolBar, sptk::CTreeItem, and sptk::CWindow.

Referenced by computeSize().

void sptk::CLayoutClient::save	(	CXmlNode *	node,
		CLayoutXMLmode	xmlMode
	)			const

Saves layout client information from XML node.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters:

	node	CXmlNode*, the XML node
	xmlMode	CLayoutXMLmode, the mode defining how the layout and/or data should be stored

Reimplemented in sptk::CButtonGroup, sptk::CBaseListBox, sptk::CControl, sptk::CDateTimeBaseInput, sptk::CInput, sptk::CListView, and sptk::CWindow.

---

Member Data Documentation

int sptk::CLayoutClient::m_layoutSize [protected]

The preferred layout size.

It makes different sense depending on the widget layout align. For layout align SP_ALIGN_TOP or SP_ALIGN_BOTTOM it is a recomended height of the widget. For layout align SP_ALIGN_LEFT or SP_ALIGN_RIGHT it is a recomended width of the widget. For layout align SP_ALIGN_NONE or SP_ALIGN_CLIENT it is ignored. If the widget isn't in CLayoutManager group - it is ignored. If it doesn't contradict with preferred widget size it will define the final size of the widget.

Referenced by layoutSize().

---

The documentation for this class was generated from the following file:

• CLayoutClient.h
